VOLUMETRIC PUMP ACURA V1

Features

3.2-inch High definition color display

Infusion Modes: Rate Mode, Time Mode, Weight Mode, Stage Mode, Drip Rate Mode

Dual Bolus Modes: Manual & Automatic bolus

3 level of occlusion pressure (programmable)

2000 history records and last configuration memory

Horizontal & Vertical fixation clamp

In-built Drug Library

Estimated Delivery Time:_5 to 7 Working Days

Specifications

Brand -  BPL

Description of product

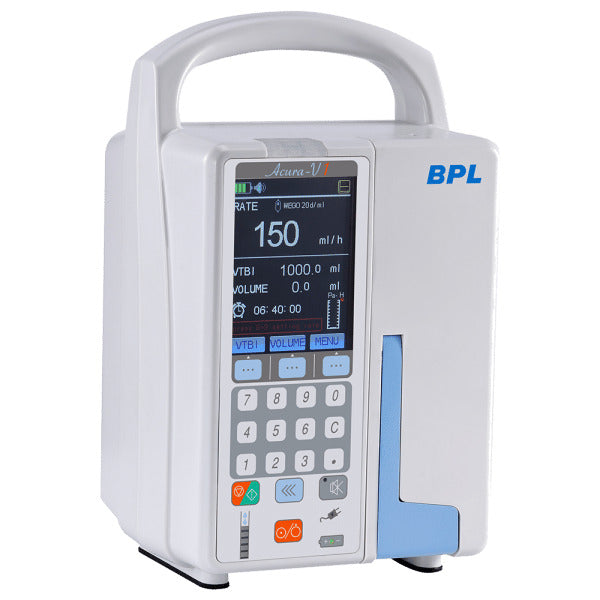

VOLUMETRIC PUMP ACURA V1

Acura V1 is Volumetric pump with color display, suitable for critical care and general infusion applications. Flow rate starts from 0.1ml/hr & compatible with all brands of infusion sets.

Infusion Modes: Rate Mode, Time Mode, Weight Mode, Stage Mode, Drip Rate Mode.

Features

Color Display

High definition 3.2” Color TFT display with user friendly interface

Multiple Infusion Modes

In-built Flow rate, Time/volume, Dosage/Weight, Infusion modes

Double CPU

Double CPU ensures safety and reliability of infusion

Bolus Modes

Dual bolus: Automatic and Manual along with Anti-Bolus function.

Device Memory

2000 history records and last configuration memory

Accurate Infusion

Precise control of the infusion rate and volume with Particular stage infusion mode

Automatic IV Set Calibration

Calibrated for all standard IV Infusion sets

Pressure Detection

3 level occlusion sensitivities setting (programmable) with picture representation

Alarms

Audio and visual alarms for alerts

Fixing Clamp

Vertical & Horizontal rotatable fixation clamp

Technical Specifications

Display 3.2 inch Color TFT (240X320 Pixels)

IV Sets Standard IV sets of 20d/ml and 60d/ml, with diameter 3.4-4.5mm

Infusion Modes Rate Mode, Time Mode, Drug/ Weight Mode, Drip Rate Mode(optional)

Infusion Accuracy ≤± 5 % (after calibration)

Volume Limit 1-9999 ml

Flow Rate Range 0.1 ml/hr-1200ml/hr (20d/ml IV set)

0.1 ml/hr-1200ml/hr (20d/ml IV set)

BOLUS

Default 600ml/h, Values adjustable within 10-1200ml/hr (20d/ml IV set)

Default 150ml/h ,Values adjustable within 10-150ml/hr (60d/ml IV set)

BOLUS Accuracy

≤± 5 % (after calibration)

Purge Rate

600ml/hr (20d/ml IV set)

150ml/hr (60d/ml IV set)

KVO

0.1-10ml/hr (after infusion)

Occlusion Level

3-level Sensitivities Setting

Bubble detection

Ultrasonic with 3-level sensitivities setting, working frequency: 2MHz±5%

Effective bubble detection volume:≥0.025ml

Audio & Visual Alarm

Door open, AIR in Line, Occlusion, No operation, Power OFF, Low Battery, Battery Err, Battery Lost, AC Lost, Sensor Err, Motor Err, Circuit Err.,COM. Err, Overflowing etc.

Power Supply

100V-240V AC，50Hz/60Hz

Battery Type

Internal rechargeable Ni-MH DC12V 2000mAh

Battery Backup

4 hours at 25ml/hr after fully recharged

Classification

Class I, CF, IPX2

Dimensions

167mm(L) X 125mm(B) X 115mm(H) ( handgrip and clamp excluded)

Weight

1.8Kg Approx

Operational Conditions

Temperature: +5˚C - +40˚C

Relative Humidity ≤80%

Atmospheric Pressure 70KPa - 106Kpa

Storage & Transportation Conditions

Temperature: -22˚C - +55˚C

Relative Humidity : 10% - 90%

Atmospheric Pressure 70KPa - 106Kpa
