BPL Cardiart 108T DIGI

Features

Single-channel ECG recorder

Includes lead-off indication

Lightweight, compact and portable design with one-touch operation ensures ease of use

Internal rechargeable NiMH battery – 2.5 hrs of operation

12-bit A/D converter, 0.1 Hz to 150 Hz bandwidth, 800Hz sampling frequency

Rubber keypad with function keys and LED indicators

Real-time high fidelity thermal array recording

Estimated Delivery Time:_5 to 7 Working Days

Specifications

Brand - BPL

Description of product

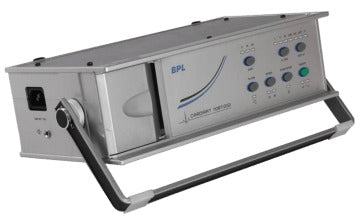

CARDIART 108T DIGI

The iconic single-channel ECG works on real-time high fidelity thermal array recording. With sequential single-channel acquisition, the rugged machine comes with a rechargeable battery as well. 108T DIGI enables easy selection of leads and notifies if one of the leads is off position ensuring user friendliness.

Features

Single-channel ECG recorder

Lightweight, compact and portable design with one-touch operation ensures ease of use

12-bit A/D converter, 0.1 Hz to 150 Hz bandwidth, 800Hz sampling frequency

Includes lead-off indication

Internal rechargeable NiMH battery – 2.5 hrs of operation

Rubber keypad with function keys and LED indicators

Real-time high fidelity thermal array recording

Technical Specification

General

Dimension (Incl Handle) - 325 mm (L) x 210 mm (W) x 90 mm (H)

Weight - < 2.6 Kgs

Environment

Operating Temperature - 10 to 40 deg. C.

Relative Humidity - 25 to 95% non-condensing

Storage Temperature - -10 to 50 deg. C.

Relative Humidity - 10 to 95% non-condensing

Standards

Safety Standard - Compliance to Class 1

                   CF type as per IEC 60601-1

EMC - IEC 60601-1-2

Power Supply

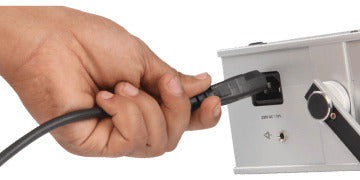

Power supply - 230 V ± 10%; 50 Hz

Power consumption - Less than 6 VA

Battery - Internal rechargeable NiMH; 9.6 V 1500 mAH

Battery life - More than 100 recordings of 1 metre length with a fully charged new battery

Battery charging indicator - Yes

Battery Iow indication - Yes

Recharging time - Approximately 14 Hours 10096

Mains protection - Fuse: T 0.1 A

Battery protection - Polymer resettable fuse

Auto shutdown – Yes

Recording

Thermal paper - In rolls; Width 50 mm, Length 20 mts, gridded

Recording system - Thermal printer, 8 dots/mm

Print Width - 40 mm

Print channel - 1

Paper transport speed - 25 or 50 mm / sec

Sensitivity

Input Dynamics - ± 300 mV @ O Hz; ± 5 mV in the pass band

Input impedance - > 100 M ohms

Frequency Response - 0.1 Hz to 150 Hz (-3 dB) without Mains/ Muscle Filter

Time constant - 1.6 seconds

CMRR - > 90 dB @ 50 Hz

DF protection – Internal

ECG

ECG Acquisition - 12 bits; 800 samples/sec.

ECG Recording - Real time acquisition and printing of selected lead

Recordable Leads - Lead l, II, III, aVR, aVL, aVF or V

Recording Sensitivity - 5, 10, or 20 mm/mV ± 5%

Filter - Digital linear phase Mains interference cum muscle tremor filter (22 Hz - 3 dB)

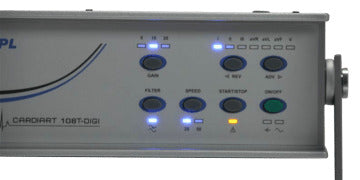

Keyboard - Rubber keypad with 7 function keys and 15 LED function indicators
