CARDIART Gen X 1

Features

ECG Analysis & Interpretation

Large Character LCD Display

PC Interface

HRV Assessment

Thermal Printer

Short Recharge Time

Ergonomic Design

Soft Silicone Keypad

Multiple Operating Modes

Internal Record Storage

Estimated Delivery Time:_5 to 7 Working Days

Specifications

Brand - BPL

Description of product

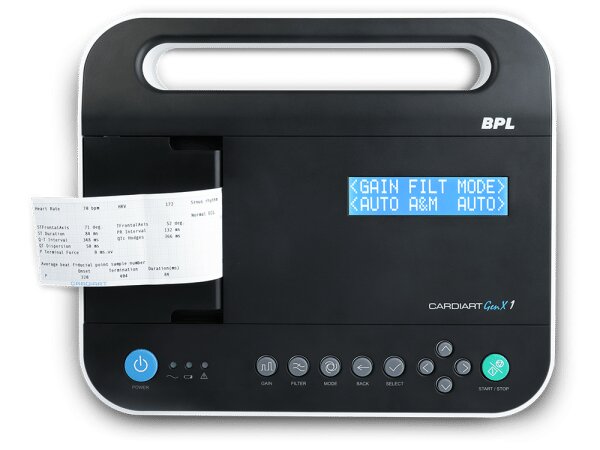

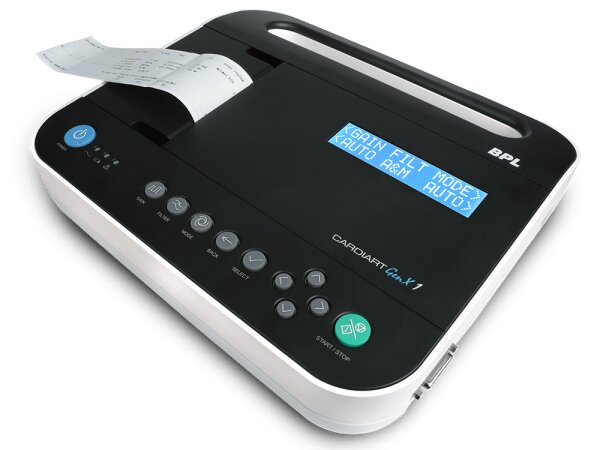

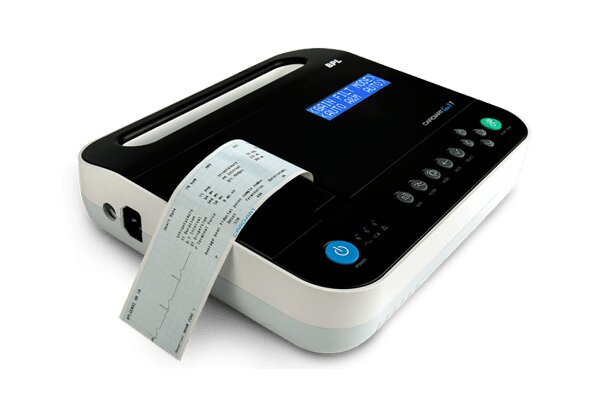

CARDIART Gen X 1

The Cardiart GenX1 is a portable 12-lead electrocardiograph single-channel ECG system with Glasgow ECG interpretation algorithm; equipped with short-term HRV assessment, PC interface for real-time data transfer & data management.

Features

Single-channel ECG recorder with 12-lead simultaneous acquisitio

Large character LCD display

One-touch operation with soft silicone keys

Auto, manual & rhythm modes

Uses Glasgow ECG Interpretation algorithm

Built-in rechargeable Li battery

Optional: Real-time ECG data transfer to PC through USB

ECG Analysis & Interpretation - Gender, age & race specific advanced ECG analysis & interpretation - The Glasgow ECG Interpretation Algorithm.

Large Character LCD Display - Dual row, cool blue, large character LCD Display with adjustable contrast.

PC Interface - Interfaces with PC using optional Rt-View software.

HRV Assessment - Equipped with with Short term HRV assessment.

Thermal printer - 58 mm wide paper for clear trace prints.

Short Recharge Time - Rechargeable lithium battery with fast charge feature for energy efficient operation.

Ergonomic Design - Enhanced portability with built-in power supply & integral handle.

Soft Silicone Keypad - Soft silicone keys for ease of operation.

Multiple Operating Modes - Auto & manual modes with selectable rhythm option.

Internal Record Storage - Stores up to 20 records internally

Technical Specifications -

ECG Acquisition

ECG Acquisition - 12 bits; 1000 samples/ secl channel

ADC Resolution - 2.55 pV/LSB

Input Dynamics - DC offset: ± 300mV; AC Differential: ± 5mV in the pass band

ECG Lead - Standard 12 leads or Cabrera; Acquired 8 leads & Reconstructed 4 leads (Lead Ill, Lead aVR, Lead aVL, Lead aVF)

Manual: 2.5 - 5-10 - 20 mm/mV ± 5%

Recording Sensitivity - Auto: Dependent on the signal strength, Optimizes automatically to 2.5-5-10-20 mm/mV ± 5%

Input Impedance - > 10 MO @ 10 Hz

Frequency Response - 0.05 Hz to 150 Hz (-3dB) without Mains/Muscle and ADF Filters

Time Constant - > 3.2 seconds

CMRR - > 90dB @ 50Hz

DF Protection – Internal

ECG Processing

ECG Analysis & Interpretation - Gender, Age & Race specific Advanced ECG Analysis & Interpretation

Glasgow ECG Interpretation Algorithm in Auto mode

ECG Analysis Sampling Rate - 500 samples/ second (sps)

Filters - Mains interference/ Muscle filter: Linear phase digital 50 Hz Notch filter with selectable 32 Hz.

Anti-drift filter: Selectable Digital 0.5Hz Anti Drift High pass linear phase filter

Pacemaker Recognition - Recognizes pulse in accordance with applicable IEC standards

Signal Memory - 10 Seconds for each lead in Auto mode

Operating Modes - Manual: acquisition and printing in real time

Auto: simultaneous acquisition and printing

Heart Rate Meter - 30 to 240 BPM or BPM, whichever is greater

Display & Storage

Display - 4.3 inch Color TFT LCD with 480 x 272 pixel resolution; 65k Color

Keyboard - Silicone Rubber keypad with 23 keys & 4 LED indicators

Indicators - Mains Connection, Battery Charging, Battery Low & System Errors

Audible Beep - Heart Rate and Key Press

Startup Time - < 4 seconds

Record Storage - 250 ECGs in internal memory

Thermal Recording

Recording System - Thermal printer, 8 dots/ mm, 72 mm usable print width

Paper Transport Speed - 5 mm/sec or 12.5 mm/sec or 25mm/sec or 50 mm/sec

Thermal Paper - In rolls: Height 80mm, Length 20m, gridded

Print Channel - 3 Channel + 1 Rhythm or 3 Channel, Manual: 3 Ch.

Print Formats - Auto: 3 Ch, 3 Ch + 1 Rhythm with selectable print durations of 2.5 secs /5 secs / 10 secs

PC Connectivity

Paperless Workflow - ECG Data Export feature to multiple formats enables this specification

PC Connectivity - Real-time ECG transfer to PC over USB (Optional)

Battery & Power

Battery - Rechargeable Lithium Polymer Ion 11.1Vdc, 3000mAh

Mains Protection - Fuse: T2A 250 V

Battery Protection - In built PCM Module

Power Supply - 100-240 VAC; 50/60 Hz

Battery Charging Time - Approximately 3 hours 30 minutes from total discharge (Unit off)

Power Consumption - Less than 60VA

Environment Specifications

Operating Temperature - +10 to +40 oc

Relative Humidity - Upto 95% RH Non-condensing

Storage/ Transport Temperature - -10˚C to 50˚C

Relative Humidity - Upto 95% RH Non-condensing

Physical Specifications

Dimension - Approx. 300mm x 260mm x 80 mm (length x width x height)

Weight - Approx. 2 Kgs.

Safety Classification

Safety Classification - Class I with internal power supply

Degree of Protection - Type CF
