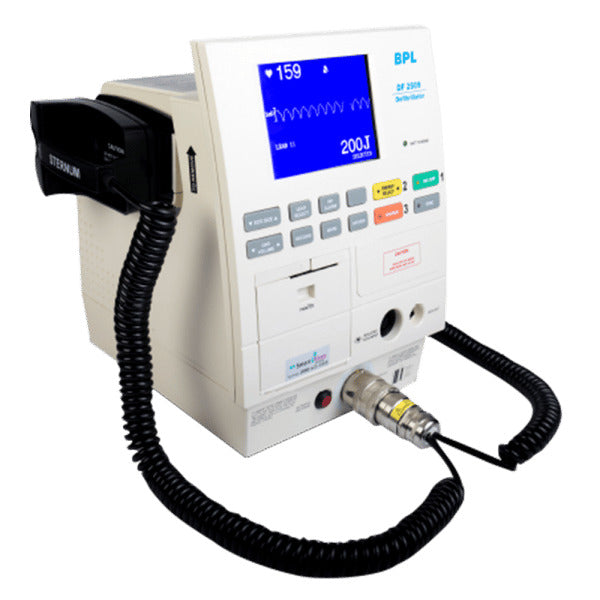

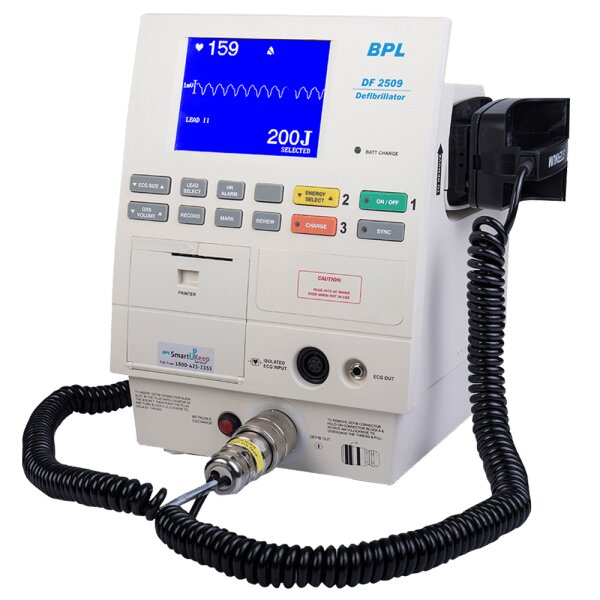

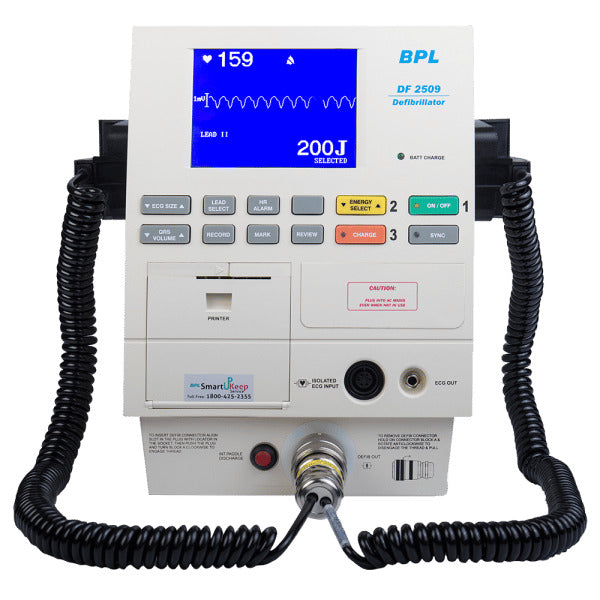

DEFIBRILLATOR DF 2509/R

Features

Bi-Phasic Defibrillator

5.7-Inch LCD Screen

User-Selectable Energy Levels From 2J To 300J In Manual Defibrillation Mode

Optional AED Mode, Which Has Voice Prompt & Metronome Signal For CPR Support

Synchronized Cardioversion

Remote Energy Selection And Charging Through Paddles

24 Events Recording

Minimum 100 Discharge Of 300J With Fully Charged New Battery

Estimated Delivery Time:_5 to 7 Working Days

Specifications

Brand - BPL

Description of product

DEFIBRILLATOR DF 2617/R

DF-2617 is designed for manual & AED mode of operation. Easy-to-use interface minimizes the time required to deliver lifesaving shock to SCA patients.

Features

Bi-phasic defibrillator

5.7-inch LCD screen

User-selectable energy levels from 2J to 300J in manual defibrillation mode

Optional AED Mode, which has voice prompt & metronome signal for CPR support

Synchronized cardioversion

Remote energy selection and charging through paddles

24 events recording

Minimum 100 discharge of 300J with fully charged new battery

Biphasic Waveform

The current-controlled biphasic waveform lowers the electrical threshold for successful defibrillation, besides adjusting for impedance

1-2-3 Operation

The machine incorporates easy-to-use 1-2-3 operation

High Energy Efficiency

100 charge/discharge of 300J with fully charged new battery

24 Event Recording

Records the heart rate and rhythm and provides the ability to easily archive and review up to 24 recorded event data

Noiseless Thermal Printing

Allows the printing of recorded events using a high resolution thermal print at reduced noise level

LCD Display

LCD display provides crisp and accurate readings with better contrast and brightness

Remote Charging Through Paddles

Remote charging and discharging through paddles facilitates easy charging for convenient use

Optional

DF 2617 R/DF 2617AED R comes with a printer

Prompts for User**

The voice and visual text prompts guide the user through the rescue process of the patient

Guided CPR**

Guided CPR helps in providing a step by step voice instructions on how to perform safe CPR

Selectable Energy Protocols**

Different levels of energy can be selected based on the requirement

 Technical Specifications

AC Input

100 – 230 V AC ± 15% ; 50 / 60 Hz without adjustment.

Power Consumption

< 70 VA

Battery Type

Rechargeable Sealed Lead Acid 12V, 4.5AH

Battery Capacity

More than 100 discharges of 300 Joules (With new and fully charged battery)

Battery Charging Time

Approx. 3 hours to 90% of full capacity. 18 hours to 100% capacity

Dimensions

260mm (W) x 280mm (D) x 250mm (H)

Weight

< 10.5 Kg. (including battery, external paddles)

Environmental

Operating Temperature

0 to 400C

Temperature

-10 to 60, -10 to 70 (DF 2617 AED/R)

Relative Humidity

15 to 95% non condensing, 30- 95% (DF 2617 AED/R

Relative Humidity (Storage)

15 to 95% non condensing

Standards

Classification

Class 1 with internal power supply as per IEC 60601-1

Degree of Protection

ECG Input

Type CF

Paddle Input

Type BF

Defibrillator

Defibrillator Waveform

Current controlled Biphasic Waveform

Energy Selection

2 – 300 Joules in steps of 2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 250, 300 Joules

Energy Select Controls

Keys on front panel

Paddle Assembly

Detachable type external paddle assembly with coiled high voltage cable. Adult and Paediatric paddles integrated into same handle

Charge Control

Momentary CHARGE key on the front panel and on the APEX paddle.

Charge Ready Indication

Charge done LED on the front panel CHARGE key and Charge done LED on the APEX paddle. Charge done tone, which can be disabled by user

Disarm Control

Pressing ENERGY SELECT control after charging has started. Automatic disarm after 60 seconds from charge ready, if shock is not delivered

Synchroniser

Energy delivered within 50mSec. of detected R wave peak. SYNC message displayed on screen. SYNC LED illuminates in Sync mode and blinks during each detected QRS wave. Sync marker appears on bothscreen and recorder strip.

Delivered Energy

Delivered energy displayed on the screen after each shock. Actual patient impedance is displayed on the screen during shock

Charge Time

300 Joules in less than 10 seconds with fully charged new battery.

Monitor

Display Size

5.7” STN LCD Display

Sweep Speed

25 ± 1 mm/sec

ECG Input Modes

ECG input through paddles or 3 lead patient cable

User Gain Settings

8 level setting: x0.25, 0.5, 0.75, 1.0,

1.5, 2.0, 3.0 & 4.0

1mV Calibration

A vertical bar line is displayed

continuously at the left end of trace.

The height varies with gain setting

and indicates height of 1mV signal.

Reset Recovery

Automatic recovery of waveform

within 0.5 seconds after electrical

overload or defibrillation.

CMRR

> 90 dB @ 50 Hz

Input Impedance

> 2.5 M Ohms

Frequency Response

e 0.5-35 Hz

Heart Rate Display

10 to 300 BPM

Heart Rate Accuracy

±2 BPM or ±2% whichever is higher

Heart Rate Alarms

Audible tone is generated if HR

limits are violated.

Three sets of high and low alarm

limits are available.

The limits are configurable in the

setup menu from 20-300 BPM in

steps of 1BPM

QRS Tone

User adjustable audible tone with every detection of QRS

Alarm / Alert Tone

e User adjustable audible tone for

alert message and HR alarm

ECG Out

1V/mV

Defibrillator Protection

Yes

Freeze

Yes (In models without recorder) Freezes the ECG trace on the screen. MARK key is used to FREEZE and remove the FREEZE condition. HR display and Alarm limits will be still active

AED (applicable in DF 2617 AED/R)

Energy @ 50 Ω

Adult: 200J- 300J

Waveform

Current control Biphasic Waveform

Preset Energy

Lo=200J, Hi=300J (Programmable

Patterns for initial 3 Shocks)

AED Mode Select Controls

Momentary AED ON/OFF key on

front panel to enter/exit AED mode

Charge Ready Indication

Display/Voice command

Printer (Optional)

Paper Speed

25 ± 1 mm /Sec

Paper Size and Type

Thermal paper in rolls. 50 mm width,

20 meters.

Print Width

40mm

Print Channel

1

Event Recording

Stores and prints 3 seconds of pre critical data and 7 seconds post critical event data up to 24 events. Data is retained even after unit is turned off.

Print Annotates

Time, Date,HR, HR Limits, Event

Marker, ECG Input Source, ECG Gain,

Defibrillator Mode, Selected and

Delivered energy, Patient Impedance

and Hospital Name

Recorder Mode

Configurable to print either real time

or 6 seconds delayed ECG.

Standard Accessories

Defibrillator-Paddles (Adult & Paediatric)

1 no.

Disposable Electrodes

1 pkt

Power Cord

1 no.

Accessory Bag

1 no.

Cardijelly

1 no.

Patient Cable

1 no.

User Manual

1 no.

Recording Paper (20M roll)

1 no.
